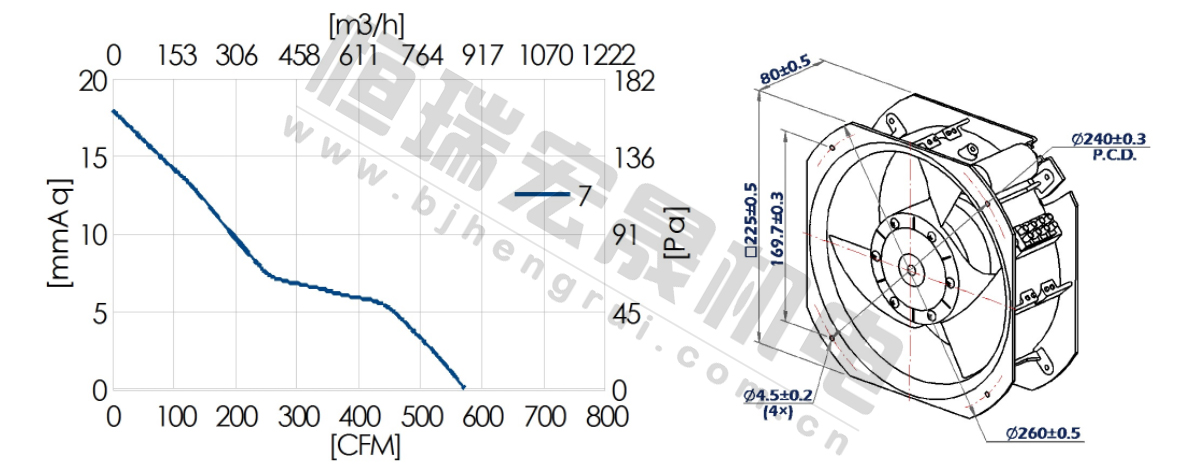

| SIZE | □225x80 mm |
| MATERIAL | Aluminum Housing, Steel Impeller |
| BEARINGS | Maintenance-Free Ball Bearings |
| MOTOR TYPE | DC Permanent Magnet Brushless |
| CONNECTION | Terminal Block or Lead wire |
| DIELECTRIC STRENGTH | 500 VAC for 1 Min. |
| INSULATION RESISTANCE | 100 MΩ min.@500VDC |
| OPERATING TEMPERATURE | -10°C to +70°C |
| TYPE OF PROTECTION | Insulation Class B, IP54 |
| SAFETY | Locked Rotor Protection and Polarity Protection |
| WEIGHT | 2530g |
| OPTION | RD, FG, PWM/Voltage(0-10 VDC), |
| PWM/Duty(Over 1kHz from 5VDC to 48VDC) |
多款風機有售，全新原裝正品，歡迎點擊?恒瑞宏晟
通風，散熱，制冷。
